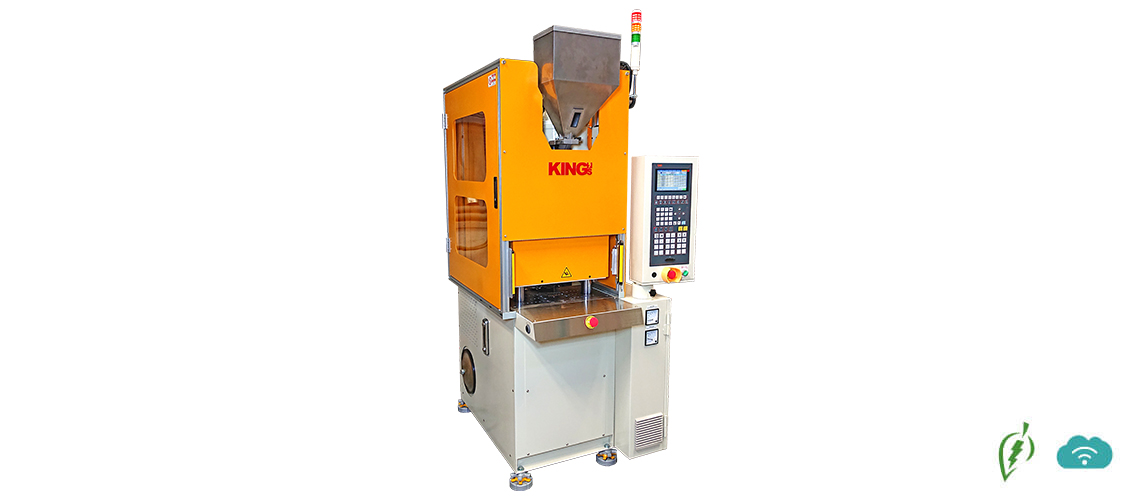

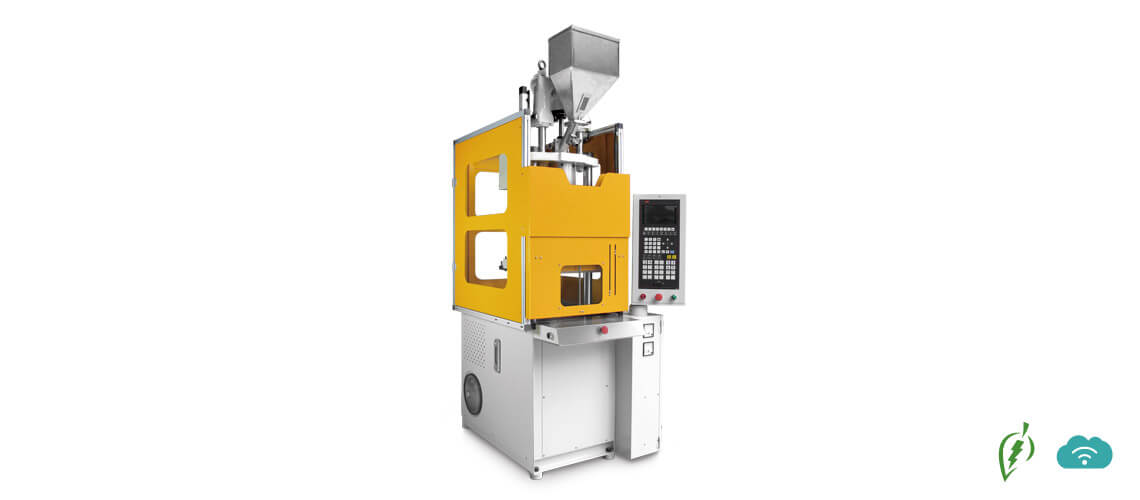

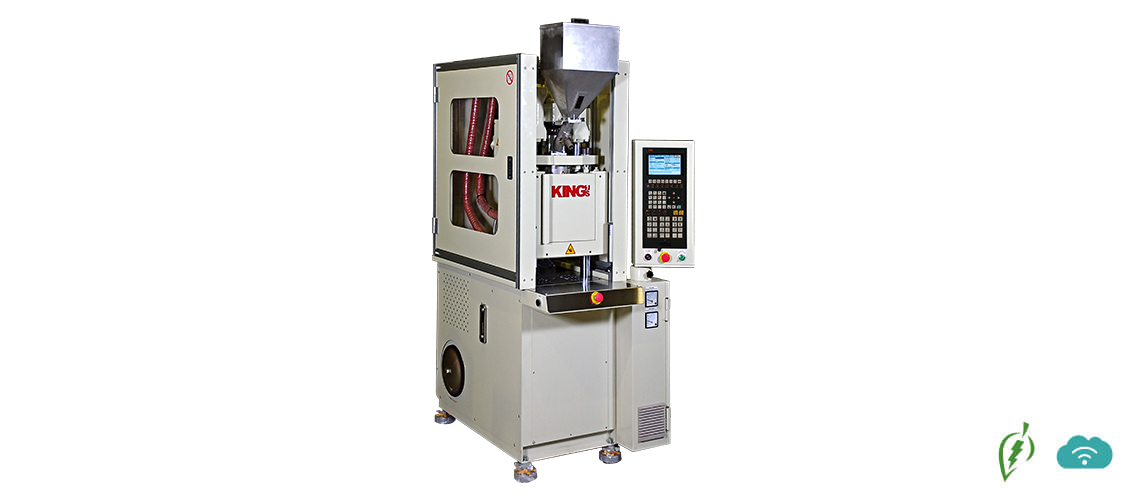

Vertical Two Tie-Bar injection Molding Machine

Enquiry Now

Features

  • Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.
  • With double slide table or rotary design, put in, takeout products and molding finish at the same time, which is more safe and efficient for production, then reduce the cost of production.
  • High precision mold platen (Parallelism/flatness:0.01/100mm), heavy duty tie bars, and low pressure mold clamping work together to greatly extend machine & mold life.
  • Nitride and NIP/Nitroflon coated screws and barrels are long-lasting, robust and provide superior acid/alkaline resistance.
  • Heavy duty double cylinder injection unit is maintenance friendly and free of oil leaks.
  • All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
  • Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
  • Low oil temperature, durable parts, high speed injection, and quiet operation.
  • Controller can record the production conditions such as temperature, pressure, flow, position available on the panel, reducing adjust of machine.
  • All machine with compact, space-saving design, reduce the heavy burden of the floor of factory.

Vertical Hydraulic Clamping System

Vertical Hydraulic
Clamping System

Vertical Hydraulic Clamping System

Energy Saving

Vertical Hydraulic Clamping System

More
Working Space

Vertical Hydraulic Clamping System

Small-volume
Large-variety Production


Main specifications

MODEL K75-10DV-1
Injection Unit
Screw Diameter mm 24 28 30
Injection Pressure kgf/cm² 1957 1438 1252
Injection Capacity cm³ 38 52 60
Injection Weight (PS) oz 1.3 1.7 2.0
gram 36 49 57
Injection Rate cc/s. 32 44 50
Screw Stroke mm 85
Nozzle Stroke mm 160
Nozzle Contact Force tf 4
Injection Speed mm/sec 71
Screw Rotation Speed rpm 0~180
Clamping Unit
Clamping Force tf 10
Clamping Stroke mm 200
Max. Mould Space mm 235 290 315
Min. Mold Height mm 35 90 115
Overall Size of Platens (H*V) mm 440 x 220
Space Between Columns (H*V) mm 300
Ejector Force tf 1.7 (2.7)
Ejector Stroke mm 21 (40)
Mold Transfer Unit (Optional)
Type* 1S R
Moving Table Stroke mm 220
Size of Moving Plate (H*V / DIA) mm 300 x 220 Ø600
Others
Drive Motor (with Variable pump) kw(HP) 3(4HP)
Heater kw 3.4
System Pressure kgf/cm² 140
Oil Tank Capacity L 90
Dimension of Machine﹝L*W*H﹞ m 1.1 x 0.9 x 2.3 1.2 x 0.9 x 2.3 1.3 x 1.2 x 2.3
Weight of Machine ton 0.6 0.8 1
